 Optional Components and Accessories to MB-500 |
 |
MB-AS-2-AP Absorber holderfor a quick sample exchange This absorber holder allows a sample exchange in a few seconds. By shifting its slider, the lead shutter or the absorber are alternatively located in the γ-beam. When the slider has the position for removing the absorber capsule, the readiation is shielded by a lead shutter. This figure shows the absorber capsule in the radition beam and the lead shutter outside. Optionally the unit can be furnished without shutter, but with two absorber capsules. |
|
 |
MB-PAH-1
Acryl capsule for taking the Mössbauer absorber inside the absorber holder of the Mössbauer bench.
|
|
 |
SA-1
Source adapter for attaching the Mössbauer source to a velocity transducer.
Suitable for all WissEl transducer models.
|
|
 |

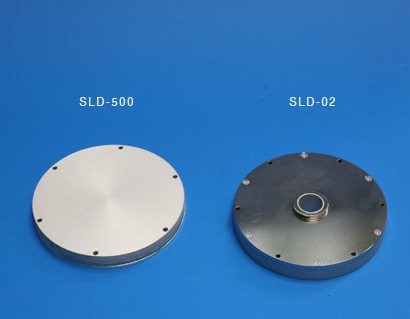

SLD-500/SLD-02
Shielding disks (sandwich structure) for front/backside of the velocity transducer.
|
|
 |
MB-H-RIKON
If the RiKon-5 CEMS Detector is used at room temperature, this holder attaches it to the Mössbauer bench. The γ-beam has horizontal direction, whereas a low temperature CEMS system has a vertical geometry.
Adjoining fugure: Holder for CEMS detector mounted on Mössbauer Bench.
|
|
 |

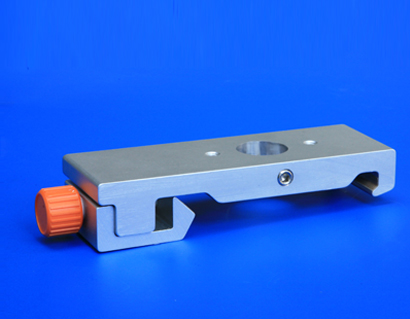

MBF-SLD-500
|
|
 |
ADAPT-1 Adapter between velocity transducer and interferometer |
|
 |
DISK-1 Sealing disk between velocity transducer and interferometer |
|
 |
PCD-1 Perspex cover disk with closable opening. When closed, the disk ist sealed with O-ring |
|
|
 |
MA-MVT-NW-10
NW 10 adapter Adjoining figure: NW 10 adapter mounted on velocity transducer |
