DFG-1000 Digital Function Generator
The DFG-1000 provides the Mossbauer driving system with precise digital waveform generation including slope waveforms.
Features
- Eight different waveforms
- Programmable slope modes
- Optional custom waveforms
- NIM module format

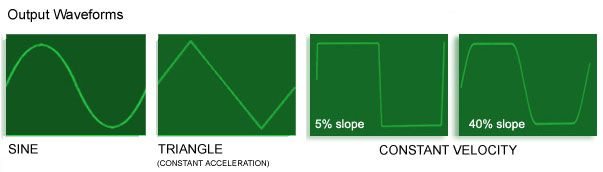

Available Waveforms
- Sine wave
- Triangle (constant acceleration)
- Slopes: 5%, 10%, 20%, 40%
- Two optional custom waveforms
Technical Specifications
| General | |
|---|---|
| Housing | NIM double width module |
| Display | LED indicators |
| Output | |
| Analog output | +/- 10V, 16-bit DAC |
| Synchronization | Channel advance, Start, Sync |
| Timing | |
| Frequency range | 5 - 100 Hz |
| Channels | 256 - 4096 |
Specifications
| ADO-INPUT | Pulse slope |
| Ext. Freq. | External frequency control |
| CHA/START | Pulse Shape: |
| Count enable | 5 V signal during the linear part of the analog output signal. |
| Sign | 5 V signal during the positive part of the analog Output signal. |
| Channels | Front panel 6-step rotary switch for selecting the number of channels |
| Frequency | Front panel 10-turn potentiometer to adjust the frequency within the range |
| Multichannel Scaling | Front panel toggle switch for switching the channel sweep on or off |
| Weight | 0.6 kg |
