TR-55 Temperature Controller

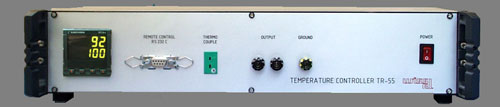

The temperature controller TR-55 is designed for controlling the temperature of the Mössbauer Furnace MBF-1100. It is equipped with a special output stage supplying sufficient power for heating up the furnace MBF-1100. A type K thermocouple (Cromel-Alumel) inside the furnace MBF-1100 is used as temperature sensor for automatic temperature control.
Features
- Maximum temperature 1100°C (for long term measurements 1000°C)
- Auto-tune facility for automatic measuring of the temperature control circuit
- Pulse width controlled output for heating device
- Built-in temperature control module EUROTHERM 3216 with many programmable functions
- Setting temperature control parameters via push buttons at the front panel
- Remote control by optional software via RS 232C serial interface
Technical Specifications
| Input | |
|---|---|
| From thermocouple | Type K thermocouple (Cromel-Alumel) |
| Output | |
| To heater | Max. 48 V 4 A |
| Connectors | |
| POWER | Mains connection with 2 A slow fuse at rear panel |
| REMOTE CONTROL | 9-pin D-SUB connector for RS 232C serial interface |
| THERMO COUPLE | Special connector for type K thermocouple |
| OUTPUT | Binder 720 connector for the heater |
| Indicators | |
| LCD display | Three color LCD display for process variables with scrolling plain text |
| Controls | |
| POWER | Front panel toggle switch for on/off |
| EUROTHERM module | 4 pushbuttons for programming temperature control parameters |
| Physical | |
| Housing | 2 U - 19" metal housing (rack mounting set optional) |
| Dimensions | 445 × 240 mm (290 mm with handles) × 86 mm (100 mm with feet) |
| Weight | Approx. 6 kg |
| Power Requirements | |
| Power supply voltage | 100-250 VAC |
| Power consumption | 480 VA |
Specifications
| To heater (inside the furnace) | Max. 48 V 4 A (see connectors OUTPUT) |
| POWER | Mains connection with 2 A slow fuse at rear panel |
| REMOTE CONTROL RS 232 C | 9-pin D-SUB connector for remote control via serial interface using optional software |
| THERMO COUPLE | Special connector for the thermocouple type K inside the furnace |
| OUTPUT | Binder 720 connector for the heater inside the furnace |
| LCD display | Three color LCD display for clear indication of process variables with scrolling plain text message indication |
| POWER | Front panel toggle switch for switching the unit on/off |
| Housing | 2 U - 19” metal housing (rack mounting set optional) |
| Weight | Approx. 6 kg |
| Power supply voltage | 100-250 VAC |
| Power consumption | 480 VA |
