MR-260 Mossbauer Drive Unit
The MR-260 is the standard drive unit for controlling WissEl velocity transducers. It provides precise feedback control for accurate velocity profiles in Mossbauer spectroscopy.
Features
- Analog feedback control
- Compatible with MA-260S and MVT-1000
- Adjustable gain and damping
- 19" rack mount design
Technical Specifications
| General | |
|---|---|
| Housing | 19" rack mount, 2U |
| Power supply | 115/230 VAC, 50/60 Hz |
| Power consumption | max. 50 W |
| Input/Output | |
| Reference input | +/- 10 V |
| Pickup input | from velocity transducer |
| Drive output | max. 2 A |
| Controls | |
| Gain adjustment | continuously variable |
| Damping adjustment | continuously variable |
- Details
- Category: Mössbauer Drive Units
- Hits: 31

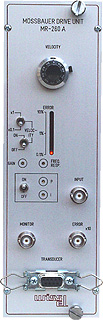

MR-260 A Drive Unit with Amplifier
The MR-260 A combines the MR-260 drive unit with an integrated main amplifier, providing a complete signal processing solution for Mossbauer spectroscopy.
Features
- Integrated drive unit and main amplifier
- Single cable connection to detector
- SCA (Single Channel Analyzer) included
- 19" rack mount design
Technical Specifications
| Drive Section | |
|---|---|
| Reference input | +/- 10 V |
| Drive output | max. 2 A |
| Amplifier Section | |
| Gain | adjustable |
| Shaping time | selectable |
| SCA threshold | adjustable |
| General | |
| Housing | 19" rack mount, 3U |
| Power supply | 115/230 VAC |
- Details
- Category: Mössbauer Drive Units
- Hits: 55
MR-360 High Power Drive Unit
The MR-360 is a high power drive unit designed for high velocity Mossbauer applications with the MVT-1000 transducer.
Features
- High power output for high velocity operation
- Digital velocity monitoring
- Overload protection
- 19" rack mount design
Technical Specifications
| General | |
|---|---|
| Housing | 19" rack mount, 3U |
| Power supply | 115/230 VAC, 50/60 Hz |
| Power consumption | max. 150 W |
| Output | |
| Maximum drive current | 5 A |
| Velocity range | up to 1000 mm/s |
| Operating frequency | 5 - 100 Hz |
